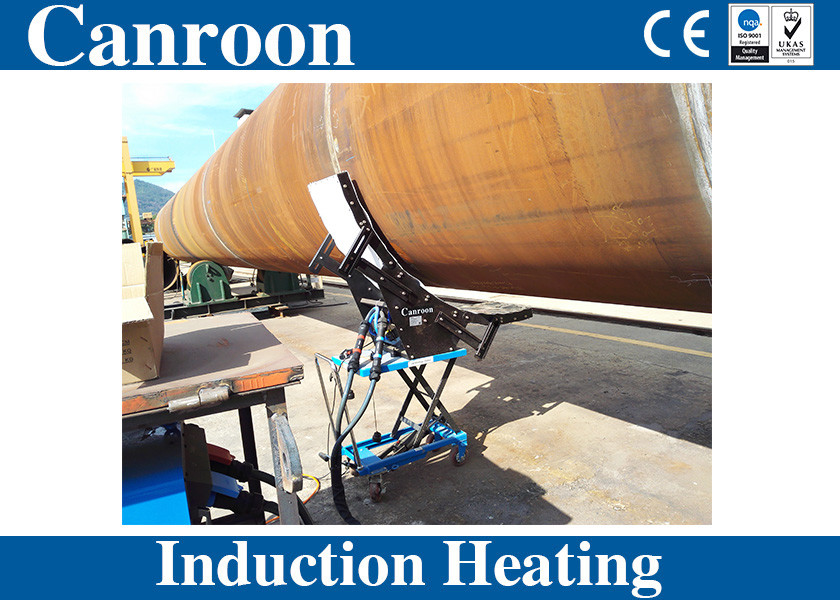

Induction Heating System for Welding Preheating & Post-Weld Heat Treatment

380V 3-Phase Induction Heating Machine For Welding Fabrication

Quick Detail:

Type:Other

Place of Origin:China (Mainland)

Brand Name:Canroon

Model Number:CR2000-080A-14T

Voltage:380V

Current:122A

Rated Capacity:80KW

Rated Duty Cycle:80KW

Dimensions:880*663*982

Weight:201Kg

Usage:induction temperature stress relievers

Certification:CE ISO9001:2008

After-sales Service Provided:Overseas service center available

Process:Induction heating equipment

Input Power:380V,3-Phase

Temperature recorder:6 Channel temperature recorder

Description:

The CR2000 induction preheater is an advanced air-cooled heating system designed for welding preheat and industrial fabrication. Capable of reaching temperatures up to 1450°F, it delivers rapid and uniform heating through multiple output channels and six control thermocouples. Compared with conventional heating methods, the CR2000 achieves significantly faster heat-up times and higher process efficiency.

The system features an intuitive operator interface that supports programmable ramp-up and hold cycles, enabling precise temperature control for various applications. It also provides guided operation to help users maximize coil performance and ensure consistent heating quality across different workpieces.

Applications:

With the introduction of theInduction Heating Machine, this simple and cost-effective heating process can be applied in the following applications to deliver fast and consistent heat:

• Welding fabrication and construction;
• Preheating of welds;
• Post-weld heat treatment;
• Coating removal;
• Shrink Fit and so on

Specifications:

Competitive Advantage:

1. Operational Flexibility That Drives Revenue: Optional mobile gear enables seamless deployment across welding, fabrication, and maintenance projects—keeping your teams productive and your workflow uninterrupted.

2. Smart Temperature Intelligence for Zero-Error Heating: Automated, guided programming ensures precise temperature execution, reducing operator learning time and improving output quality.

3. Data-Driven Thermal Precision: Multiple thermocouple inputs deliver real-time insights and active temperature correction, ensuring consistent results across every job.

4. Quality Enhancement That Reduces Rework Costs: Uniform heat penetration strengthens weld integrity, minimizes defects, and lowers your total cost of quality.

5. Enterprise-Grade Safety Architecture: Built-in output detection and isolation fault protection safeguard operations, preventing costly downtime.

6. OPEX-Friendly Heating Solution: No fuel consumption, ultra-low insulation costs, and highly reusable materials significantly reduce long-term operational spending.

7. Material-Protective Heating Process: Internal induction heating eliminates surface damage, reducing scrap rates and extending material life.

8. Accelerated Time-to-Heat for Faster Turnaround: Rapid heating cycles shorten project timelines and increase equipment utilization rates.

9. Cleaner, Safer, More Compliant Worksites: No open flames, no gas cylinders—supporting safer operations and easier compliance with site safety regulations.

10. High-Efficiency Energy Conversion: Over 90% efficiency delivers more usable energy to the part, lowering electricity costs while raising throughput.

11. Rapid Deployment, Immediate Productivity: Flexible blankets and intuitive controls allow teams to set up fast and start generating value right away.

Tag:Induction Heating
